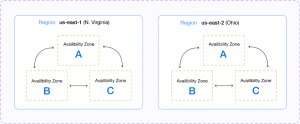

Regions and Availability Zones: The Foundation
- Regions are physical locations around the world that consist of clustered data centers called availability zones. Each region is physically isolated from and independent of other regions.
- Availability Zone are one or more physical data centers with redundant power, networking, and connectivity. While a single availability zone can span multiple data centers, no two zones share a data center.
This distributed architecture provides several key benefits:
- High Availability: Deploy applications across multiple AZs to protect against single-point failures
- Low Latency: Distribute workloads closer to end users by selecting appropriate regions
- Data Sovereignty: Keep data within specific geographic boundaries to meet compliance requirements
What is a VPC?
Amazon Virtual Private Cloud (VPC) enables connectivity between your AWS cloud workloads, forming the foundation you need to run applications in the cloud. Each VPC is limited to an AWS region. At a foundational level, a VPC comprises of:
- Subnets created from the main VPC address space; limited to a single availability zone
- Route Tables that influence traffic forwarding to external destinations
VPC Subnet Types
VPCs can contain three main types of subnets:
| Subnet Type | Internet Access | Use Case | Security Level |
| Public | Direct via Internet Gateway | Web servers, load balancers | Lower (requires additional security controls) |
| Private | Via NAT Gateway | Application servers, databases | Medium |
| Isolated | No internet access | Highly sensitive systems | Highest |
VPCs provide logical isolation within the AWS cloud, similar to having a private data center but with the scalability and flexibility of cloud infrastructure.
A VPC can reach the outside world through the following gateways:
- Virtual Private Gateway (VGW) enables the ability to have multiple VPCs, in the same region and account share a Direct Connect
- Direct Connect Gateway (DGW) extends Virtual Private Gateway capabilities by adding the ability to connect VPCs in one region to a Direct Connect in another region
- Internet Gateway (IGW) provides transport to the internet from your VPC; Horizontally scaled, redundant, and highly available
- Transit Gateway (TGW) connects multiple VPCs and on-premises networks through a central hub; supports inter-region peering
Note: Alkira is an official AWS Transit Gateway Connect partner. See press release.
AWS Private Network Architecture
Behind the scenes, AWS operates a global private network infrastructure that interconnects all regions and availability zones. This private backbone provides:
- Significantly lower latency than public internet connections
- Increased security as traffic stays within AWS’s private network
- Consistent performance for cross-region communications
- Dedicated bandwidth that doesn’t compete with public internet traffic
Security in AWS Networking
AWS networking includes multiple security layers:
- Network Access Control Lists (NACLs): Stateless firewalls that operate at the subnet level
- Security Groups: Stateful firewalls that operate at the instance level
- Traffic Flow Logs: Capture metadata about traffic moving through your VPC
- AWS Shield: Protects against DDoS attacks
- AWS Network Firewall: Provides filtering for network traffic
Advanced VPC Connectivity Options
VPC Peering
VPC peering allows direct communication between VPCs using private IP addresses, as if they were on the same network. Key characteristics:
- Traffic stays on AWS’s private network backbone
- No single point of failure or bandwidth bottleneck
- Does not support transitive peering (requires direct peering between VPCs)
AWS Transit Gateway
Transit Gateway simplifies network architecture by acting as a hub that controls how traffic is routed among all connected networks:
- Connects VPCs, Direct Connect, and VPN connections
- Supports thousands of attachments
- Enables centralized management of routing policies
- Supports multi-region and multi-account networking
AWS PrivateLink
PrivateLink provides private connectivity between VPCs, AWS services, and on-premises networks:
- Does not require internet gateways, NAT devices, or public IP addresses
- Traffic does not traverse the public internet
- Simplifies network security by eliminating exposure to the public internet
Conclusion
AWS networking provides a flexible, scalable, and secure foundation for cloud applications through its global infrastructure of regions and availability zones. The VPC forms the core networking construct, with multiple options for connectivity both within AWS and to external networks. By leveraging these networking capabilities effectively, organizations can build highly available, secure, and performant cloud architectures that meet their specific business requirements.
Understanding AWS networking fundamentals is essential for designing optimal cloud deployments, whether you’re building a simple web application or a complex enterprise solution spanning multiple regions.
If you have questions or would like to see a live demonstration, please contact us.
